Product Introduction

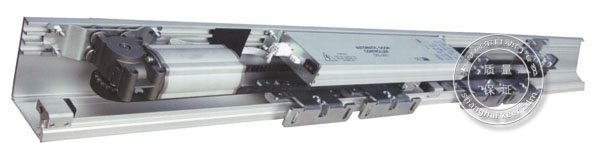

KE-200 automatic sliding door
TECHNICAL DATA
Door configuration： single leaf ,double leaf
Door leaf weight limit：1×150kgs,2×120kgs
Clean open width：600-1800mm, 1000-3000mm
Power supply： AC 220V±10%,50/60HZ 2A
AC 110V±10%,50/60HZ 2A
Power consumption：65W
Opening speed：200-500mm/s( adjustable)
Closing speed：200-500mm/s( adjustable)
Hold-open time：0-9S
Manual force：<30N,<40N
Environment temperature： -20°C~+50°C
MAIN FUNCTION
Outstanding Performance
Themicrocomputercontrollerhasselflearningfunction;thedrivedeviceworkssmoothly, i t’ssafeandreliable;thecomprehensivefunctionscansatisfytheindividualneeds.
European DesignStructure
Motor,controller and belt pulley are hanging in the top of guide rail,gives large space for big hangers to drive smoothly,softnoise.
Multi-functionalSwitch
Manager can realize five functions conveniently on the automatic door:lock ,keep open,one way,half open,automaticoperation.
SecurityRequirement
The safety beam photocell will keep the door to offer the security for passer-by.In an emergency,press the abrupt stop switch,the door will stop immediately,security is fullyguaranteed.
Fire SafetyRequirement
The door will open automatically when fire happens,it helps to win more time for escapes .
