Product Introduction
The Keer revolving door range is designed for installation in entrance areas where interior environmental control coupled with elegant aesthetics are desired. Available as Manual, Automatic, Positional or Servomatic, the Keer range offers flexibility in design and function.

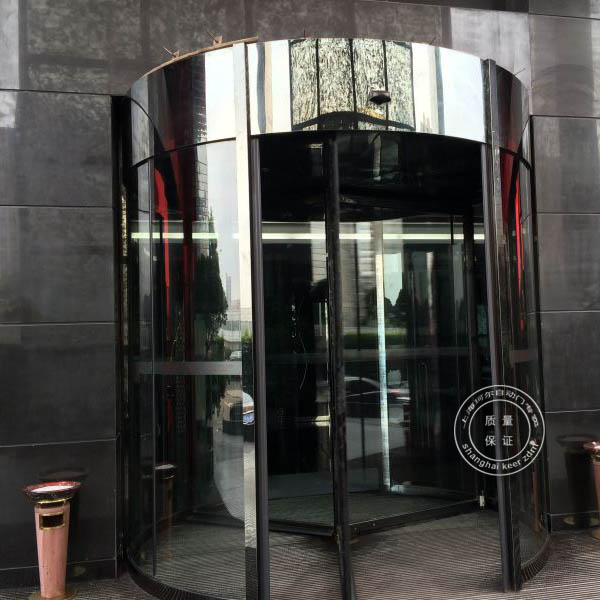

Three/Four Wing AUTO-Revolving Door
FUNCTION INTRODUCTION
Induction revolving, constant temperature indoor, emergency stop, button for disabled pass slowly, safety and fire protection, motor lock, door leaf stop position, speed adjustment, manual/automatic switch.
TECHNICAL DATA
Supply power: AC 220V±10%，50/60Hz
Power consumption: motor 200-350W, light 200-400W
Intelligent computer control
Multilevel control system, frequency control drive
STANDARD CONFIGURATION
1.Glass
Door leaf and exhibition box are 6/8mm transparent tempered glasses, curved wall is 10mm tempered glasses (or 5+5mm arc safety laminated glass).
2. Drive device
220V±10%, 50/60Hz, 0.25-0.35KW
3. Central control computer
PLC programmable logic control system.
4. Revolving pattern
The variable-frequency speed adjustment system starts, revolves, and stops smoothly and safely.
5. Sensor
Microwave motion sensors.
6. Prevent pinching sensor
located at the upright column at entrance right.
7. Avoid to knock at the door leaf
Installed a sensor in the rubber strip at the bottom of the leaf.
8. Emergency stop button
Installed on the upright column at entrance right.
9. Button for the disabled
Use for disabled people pass slowly.
10. Mechanical lock Used for locking the door at night
11. 6-9 pieces laser ceiling lamp
12. Combination operation panelFunctional combination operation panel facilitate function setting.
