Product Introduction
Automatic sliding door with emergency exit function - Shanghai Keer design and installation maintenance

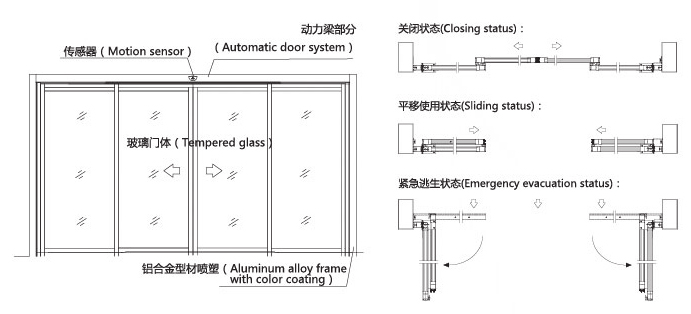

Emergency Opening
Where passageways are narrow or are heavily used, safe evacuation of persons in an emergency can be more problematic. Keer have product that offer a solution whether emergency access is required or just access for occassional wider loads. With the keer total opening system, however, this area remains fully accessible when needed. Most common applications of the keer are in vehicle salesrooms, shopping centres, department stores, furniture outlets. This makes this door particularly suitable in narrow passageways.
The form of the door body: single fan / double fan
Net opening width: DW=800mm-1200mm / DW=800mm-2500mmBody weight: 1x150kg / 2 x 120kg
Height of passage: 2500mm
Opening speed: 200-500mm/s (adjustable)
Shutting speed: 300-500mm/s (adjustable)
Open time: 2~20s (adjustable)
Manual thrust: <100N
Power supply voltage: 220V + 10%
Power consumption: 100W
